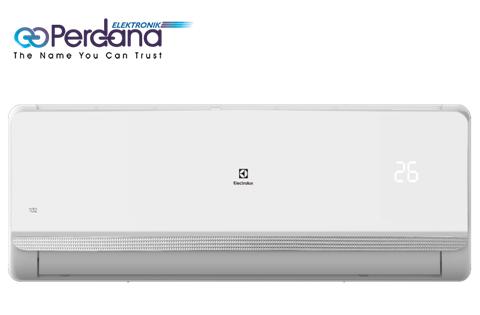

| Electrolux model number |
ESM09CRR-C1 |
| PNC |
956004682 |
| EAN Code |
9316561063868 |
| INDOOR UNIT MODEL NUMBER |
ESM09CRR-C1I |
| IDU PNC |
956004683 |
| Electrolux EAN code IDU |
9316561063875 |
| OUTDOOR UNIT MODEL NUMBER |
ESM09CRR-C1E |
| ODU PNC |
956004684 |
| Electrolux EAN code ODU |
9316561063882 |
| Compressor |
Fix Speed |
| AC type |
Split |
| Power Source (Nameplate parameter) |
220-240V/1Ph/50Hz |
| Cooling Capacity(Btu/h) (Nameplate parameter) |
9000 |
| Cooling power input(W) (Nameplate parameter) |
700 |
| Refrigerant Type - Nameplate |
R32 |
| Refrigerant Weight - Nameplate |
540 |
| Rated power supply Voltage (V) |
220~240 |
| Working Voltage Range |
198V ~264V |
| Rated power supply Frequence (Hz) |
50Hz |
| IDU dimension(NET)(W/H/D)( mm) |
750×285×200 |
| Indoor Unit Dimension of Package (W/H/D)( mm) |
820×277×347 |
| Indoor Weight(Net /Gross) |
9/11 |
| ODU dimension(NET)(W/H/D)( mm) |
730×545×285 |
| Outdoor Unit Dimension of Package (W/H/D)( mm) |
850×620×370 |
| Outdoor Weight(Net /Gross) |
26/29.5 |
| RC temperature control range (℃) |
16~32 |
| Length of Power Cord(m) |
>1.5m beside IDU |
| Rated Cooling Capacity (BTU) - Name Plate |
9000 |
| EER(Full Load) |
>10.41 (4 Star) |
| Rated Current(A) - (cooling) - Name Plate |
3.4 |
| Max Rated Current(A) |
5 |
| Noise requirment (indoor unit) - sound pressure dB (A) |
42/37/33/31 |
| Noise requirment (outdoor unit) - sound pressure dB (A) |
50 |
| Standby power (W) |
<5W |
| Features |
|
| Indoor Unit (Anti UV for White Color) |
Yes |
| Filter |
|
| High-Delicate Dust Filter |
Yes |
| 3D Swing |
|
| Horizontal |
no |
| Vertical |
Yes |
| Fin |
|
| Indoor Unit |
Blue |
| Outdoor Unit |
Blue |
| Swing Right/left |
no |
| Turbo |
Yes |
| Timer |
Yes |
| I Favor |
Yes |
| I Feel |
Yes |
| Health |
Yes in RC (No In IDU) |
| Sleep |
Yes |
| I Clean |
Yes |
| X-Fan(Anti fungas) |
Yes |
| Light |
Yes |
| |
|
| Other Feature |
|
| Self Diagnose |
Yes |
| Dual drainage |
Yes |
| Drain Hose Length(M - In IDU Package) |
2m |
| IP Grade |
IPX4 |
| Accessory & Installation |
|
| Max Pipe installion Length (m) |
15 |
| Refrigerant piping Max. Height Difference in level(m) |
10 |
| Additional Refrigerant(>standard length)(g/m) |
12 |
| Dimension - Refrigerant piping liquid side/gas side (Bristh Metric System) |
Φ6.35/Φ9.52(1/4"/3/8") |
| Nut dimension (Bristh Metric System) |
Φ6.35/Φ9.52(1/4"/3/8") |
